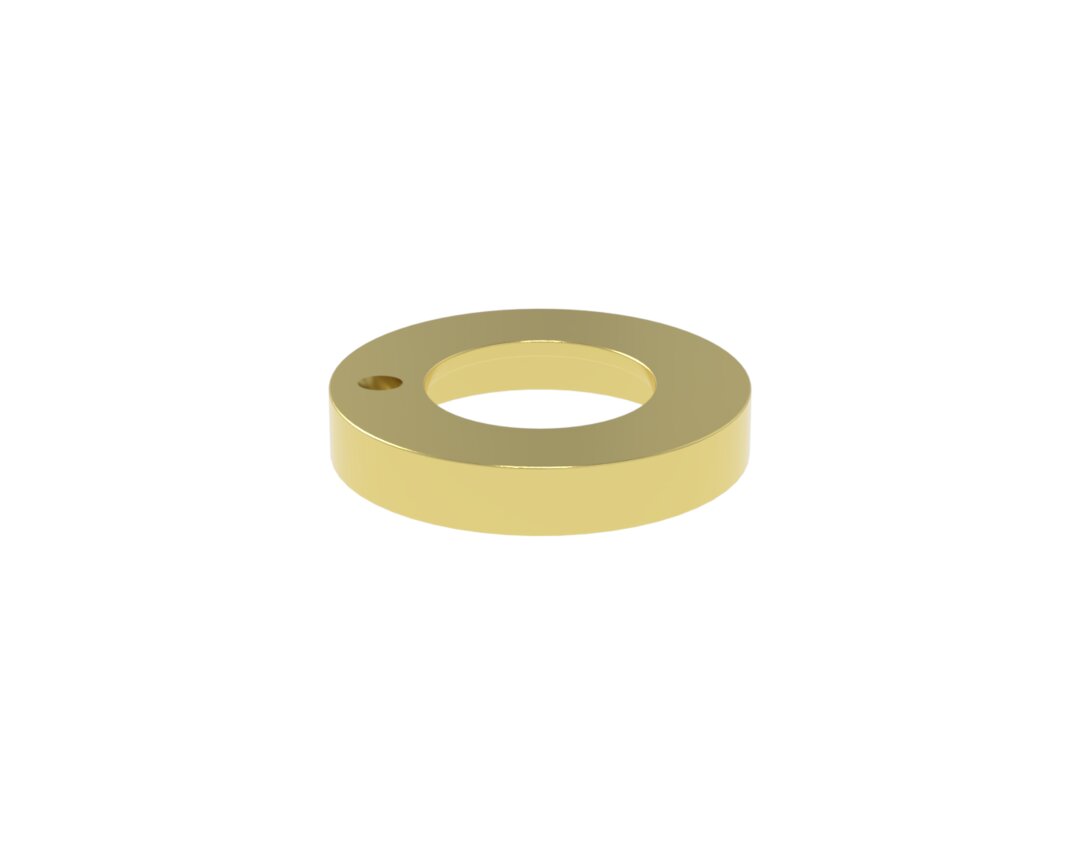

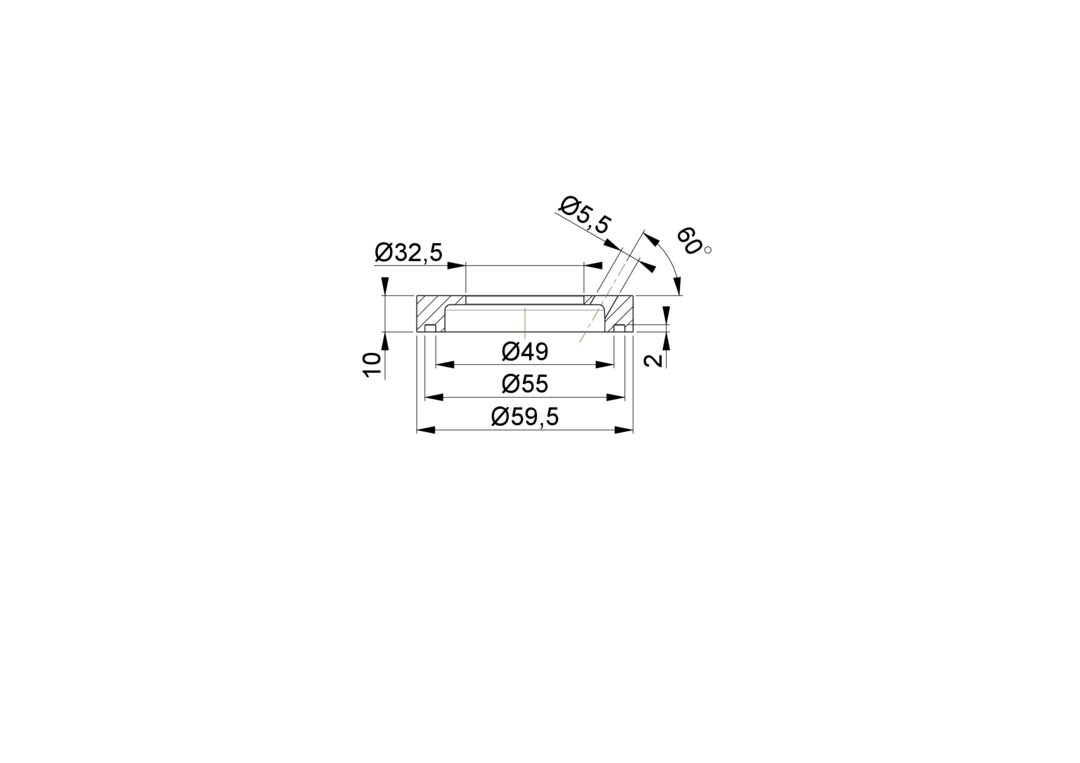

MIBAS027T
Flange
MIBAS027T
Flange
| Code | Material | Diameter | Hole | Height | Pop-up hole | O-Ring | Availability |
|---|---|---|---|---|---|---|---|
| MIBAS026T | CW617N | ⌀ 59,5 mm | 32,5 mm | 10 mm | no mm | 2,5x48 | |
| MIBAS027T | CW617N | ⌀ 59,5 mm | 32,5 mm | 10 mm | 6 mm | 2,5x48 |
- Material
- CW617N
- Diameter
- ⌀ 59,5 mm
- Hole
- 32,5 mm
- Height
- 10 mm
- Pop-up hole
- no mm
- O-Ring
- 2,5x48
- Availability
- Material
- CW617N
- Diameter
- ⌀ 59,5 mm
- Hole
- 32,5 mm
- Height
- 10 mm
- Pop-up hole
- 6 mm
- O-Ring
- 2,5x48
- Availability
