MIMIL001T2a

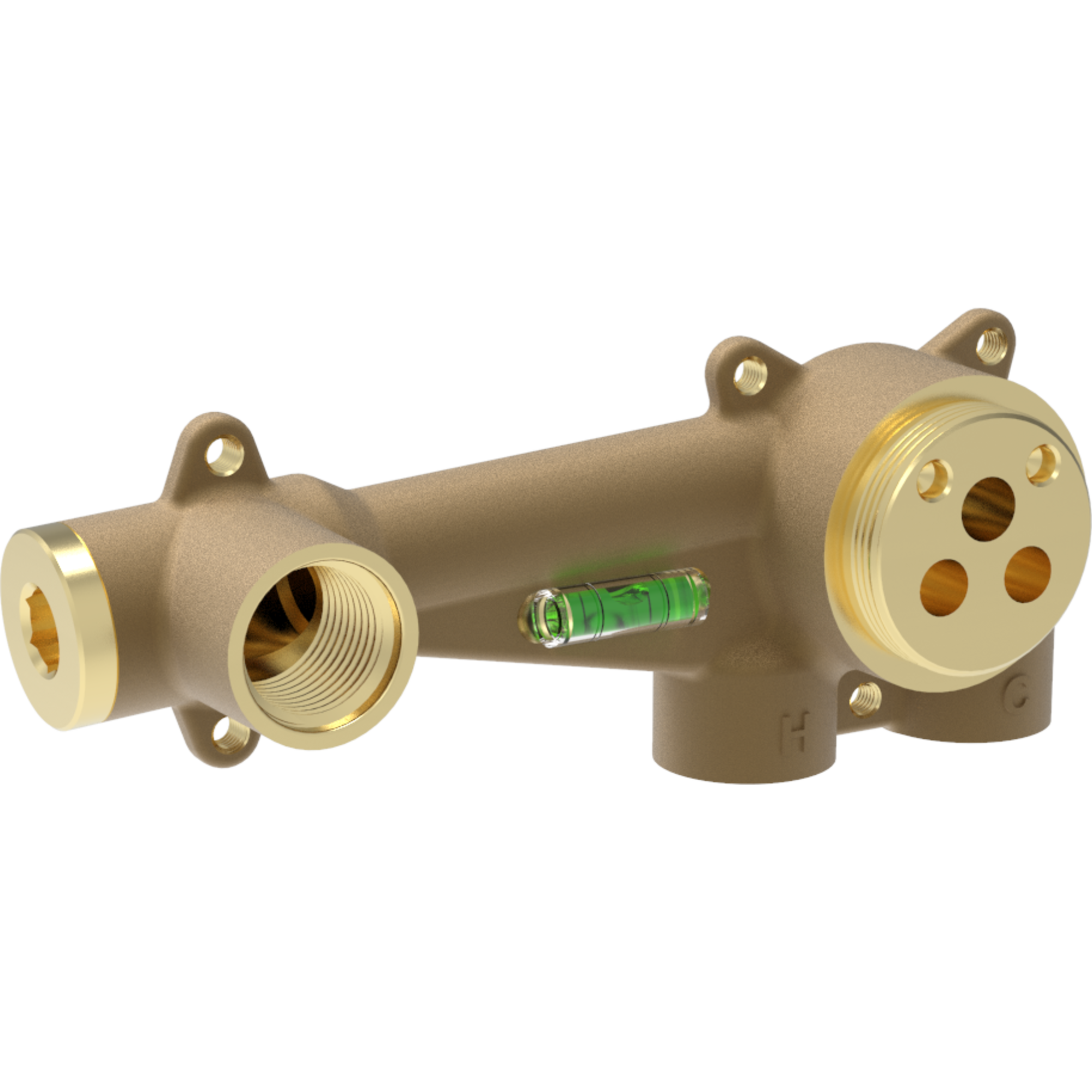

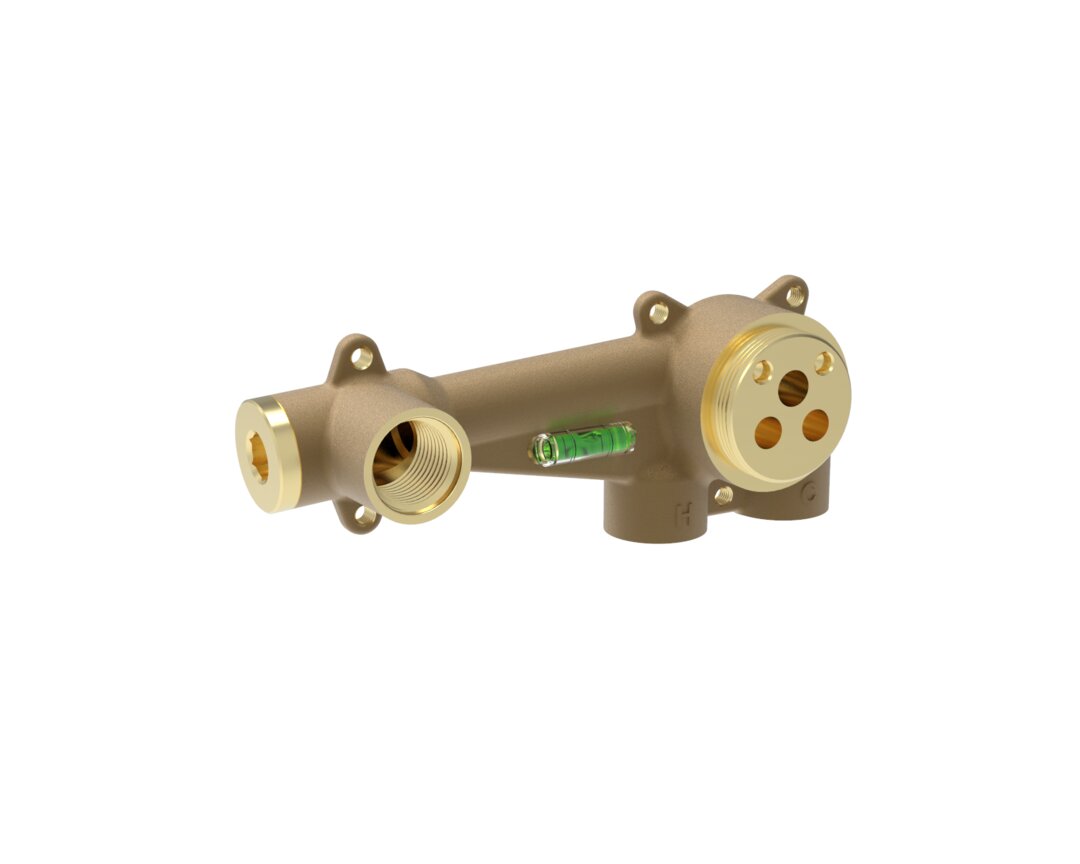

One-piece concealed forged single-lever washbasin mixer body with bubble level
MIMIL001T2a
One-piece concealed forged single-lever washbasin mixer body with bubble level

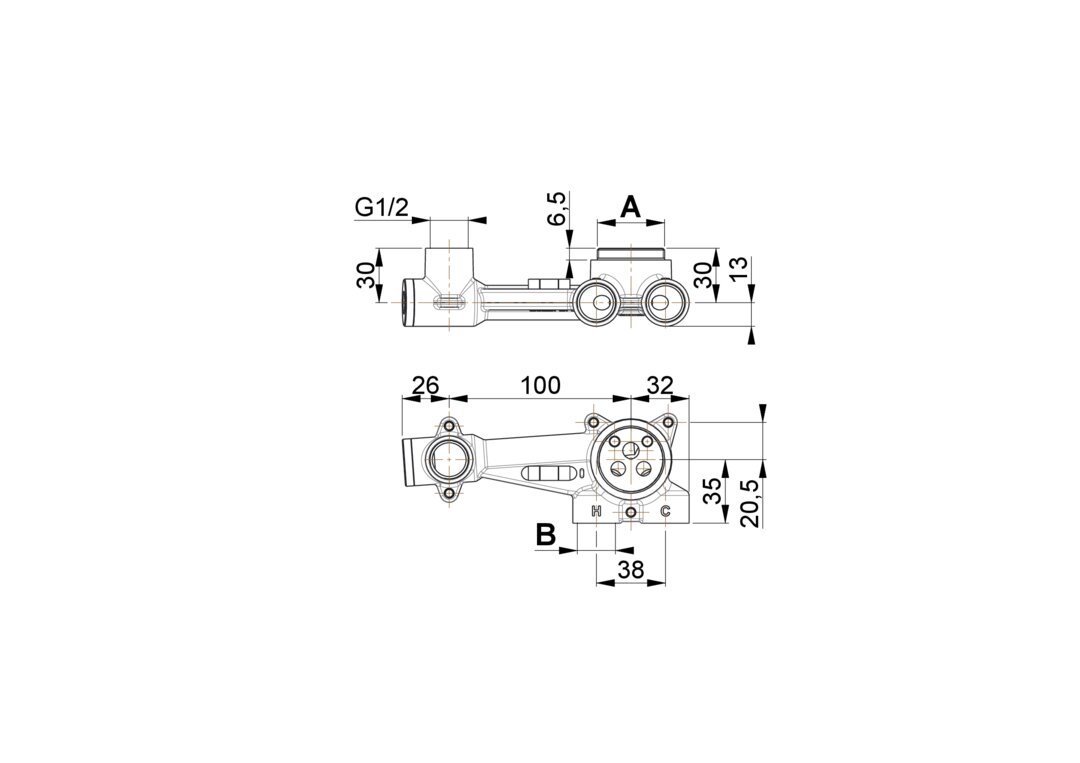

| Code | Material | Measure A | Measure B | Water outlets | Center distance | Cartridge | Max waterflow (3 bar) | Availability |
|---|---|---|---|---|---|---|---|---|
| MIMIL001T2a | CW617N | M37x1,5 | 2x G 1/2" | G 1/2" | 100 mm | 35 mm | 23,1 l/min | |
| MIMIL001T2a_1b | CW510L | M37x1,5 | 2x G 1/2" | G 1/2" | 100 mm | 35 mm | 23,1 l/min | |
| MIMIL001T2a_1g | CW511L | M37x1,5 | 2x G 1/2" | G 1/2" | 100 mm | 35 mm | 23,1 l/min | |
| MIMIL002T2a | CW617N | 42/19 | 2x G 1/2" | G 1/2" | 100 mm | 40 mm | — | |
| MIMIL002T2a_1b | CW510L | 42/19 | 2x G 1/2" | G 1/2" | 100 mm | 40 mm | — | |
| MIMIL002T2a_1g | CW511L | 42/19 | 2x G 1/2" | G 1/2" | 100 mm | 40 mm | — | |
| MIMIL005T2a | CW617N | 27/19 | 2x G 1/2" | G 1/2" | 100 mm | 25 mm | 12,5 l/min | |
| MIMIL005T2a_1b | CW510L | 27/19 | 2x G 1/2" | G 1/2" | 100 mm | 25 mm | 12,5 l/min | |
| MIMIL005T2a_1g | CW511L | 27/19 | 2x G 1/2" | G 1/2" | 100 mm | 25 mm | 12,5 l/min | |
| MIMIL006T2a | CW617N | M27x1 | 2x G 1/2" | G 1/2" | 100 mm | 25 mm | 12,5 l/min | |
| MIMIL006T2a_1b | CW510L | M27x1 | 2x G 1/2" | G 1/2" | 100 mm | 25 mm | 12,5 l/min | |
| MIMIL006T2a_1g | CW511L | M27x1 | 2x G 1/2" | G 1/2" | 100 mm | 25 mm | 12,5 l/min | |
| MIMIL011T2a | CW617N | M37x1,5 | 2x 1/2" NPT | G 1/2" | 100 mm | 35 mm | 23,1 l/min | |
| MIMIL011T2a_1b | CW510L | M37x1,5 | 2x 1/2" NPT | G 1/2" | 100 mm | 35 mm | 23,1 l/min | |
| MIMIL011T2a_1g | CW511L | M37x1,5 | 2x 1/2" NPT | G 1/2" | 100 mm | 35 mm | 23,1 l/min | |
- Material
- CW617N
- Measure A
- M37x1,5
- Measure B
- 2x G 1/2"
- Water outlets
- G 1/2"
- Center distance
- 100 mm
- Cartridge
- 35 mm
- Max waterflow (3 bar)
- 23,1 l/min
- Availability
- Material
- CW510L
- Measure A
- M37x1,5
- Measure B
- 2x G 1/2"
- Water outlets
- G 1/2"
- Center distance
- 100 mm
- Cartridge
- 35 mm
- Max waterflow (3 bar)
- 23,1 l/min
- Availability
- Material
- CW511L
- Measure A
- M37x1,5
- Measure B
- 2x G 1/2"
- Water outlets
- G 1/2"
- Center distance
- 100 mm
- Cartridge
- 35 mm
- Max waterflow (3 bar)
- 23,1 l/min
- Availability
- Material
- CW617N
- Measure A
- 42/19
- Measure B
- 2x G 1/2"
- Water outlets
- G 1/2"
- Center distance
- 100 mm
- Cartridge
- 40 mm
- Max waterflow (3 bar)
- —
- Availability
Accessories
- Material
- CW510L
- Measure A
- 42/19
- Measure B
- 2x G 1/2"
- Water outlets
- G 1/2"
- Center distance
- 100 mm
- Cartridge
- 40 mm
- Max waterflow (3 bar)
- —
- Availability
Accessories
- Material
- CW511L
- Measure A
- 42/19
- Measure B
- 2x G 1/2"
- Water outlets
- G 1/2"
- Center distance
- 100 mm
- Cartridge
- 40 mm
- Max waterflow (3 bar)
- —
- Availability
Accessories
- Material
- CW617N
- Measure A
- 27/19
- Measure B
- 2x G 1/2"
- Water outlets
- G 1/2"
- Center distance
- 100 mm
- Cartridge
- 25 mm
- Max waterflow (3 bar)
- 12,5 l/min
- Availability
Accessories
- Material
- CW510L
- Measure A
- 27/19
- Measure B
- 2x G 1/2"
- Water outlets
- G 1/2"
- Center distance
- 100 mm
- Cartridge
- 25 mm
- Max waterflow (3 bar)
- 12,5 l/min
- Availability
Accessories
- Material
- CW511L
- Measure A
- 27/19
- Measure B
- 2x G 1/2"
- Water outlets
- G 1/2"
- Center distance
- 100 mm
- Cartridge
- 25 mm
- Max waterflow (3 bar)
- 12,5 l/min
- Availability
Accessories
- Material
- CW617N
- Measure A
- M27x1
- Measure B
- 2x G 1/2"
- Water outlets
- G 1/2"
- Center distance
- 100 mm
- Cartridge
- 25 mm
- Max waterflow (3 bar)
- 12,5 l/min
- Availability
Accessories
- Material
- CW510L
- Measure A
- M27x1
- Measure B
- 2x G 1/2"
- Water outlets
- G 1/2"
- Center distance
- 100 mm
- Cartridge
- 25 mm
- Max waterflow (3 bar)
- 12,5 l/min
- Availability
Accessories
- Material
- CW511L
- Measure A
- M27x1
- Measure B
- 2x G 1/2"
- Water outlets
- G 1/2"
- Center distance
- 100 mm
- Cartridge
- 25 mm
- Max waterflow (3 bar)
- 12,5 l/min
- Availability
Accessories
- Material
- CW617N
- Measure A
- M37x1,5
- Measure B
- 2x 1/2" NPT
- Water outlets
- G 1/2"
- Center distance
- 100 mm
- Cartridge
- 35 mm
- Max waterflow (3 bar)
- 23,1 l/min
- Availability
- Material
- CW510L
- Measure A
- M37x1,5
- Measure B
- 2x 1/2" NPT
- Water outlets
- G 1/2"
- Center distance
- 100 mm
- Cartridge
- 35 mm
- Max waterflow (3 bar)
- 23,1 l/min
- Availability
- Material
- CW511L
- Measure A
- M37x1,5
- Measure B
- 2x 1/2" NPT
- Water outlets
- G 1/2"
- Center distance
- 100 mm
- Cartridge
- 35 mm
- Max waterflow (3 bar)
- 23,1 l/min
- Availability
