MIPIA019Ta_3b

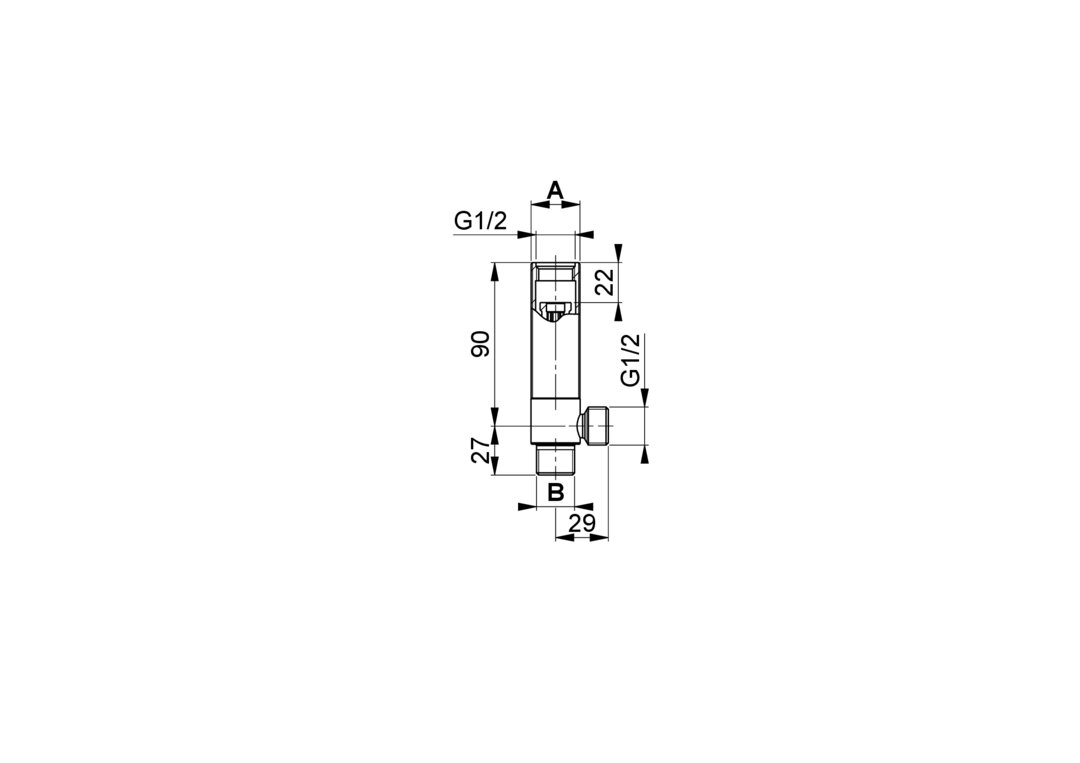

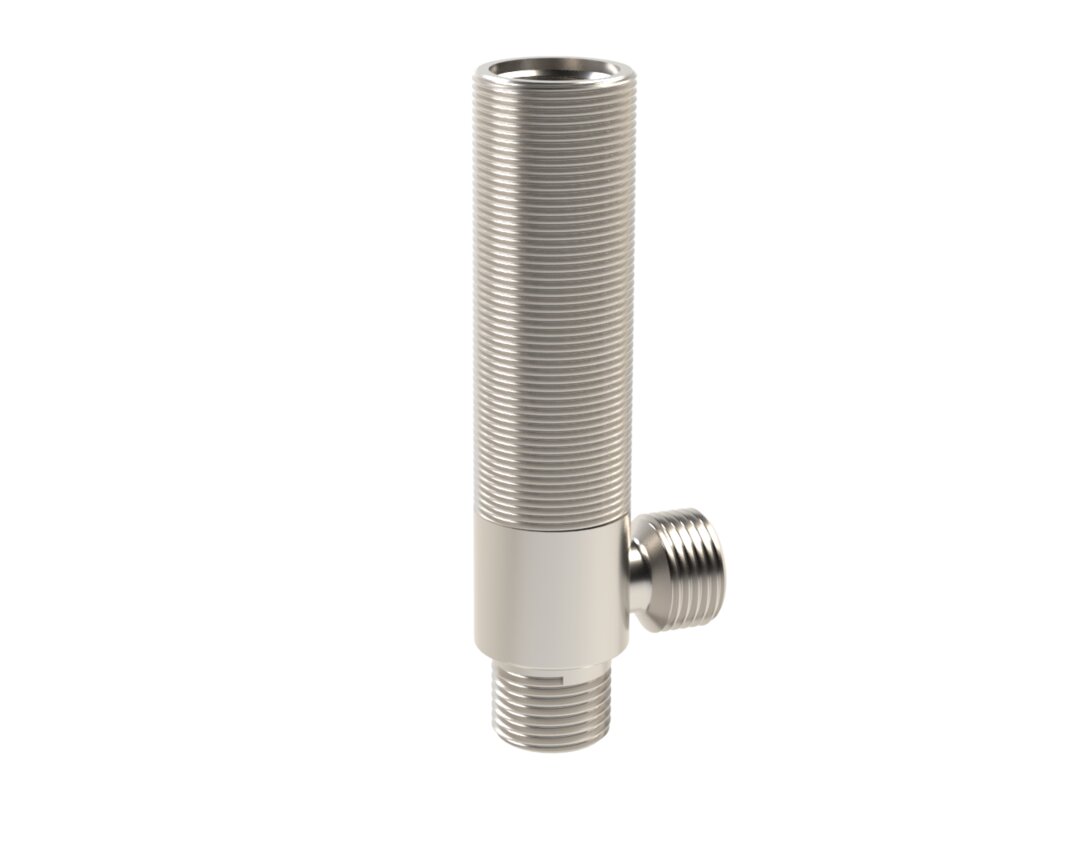

Headwork side valve with assembled seat machined from stainless steel rod
MIPIA019Ta_3b
Headwork side valve with assembled seat machined from stainless steel rod
| Code | Material | Measure A | Measure B | Water outlets | Headwork | Availability |
|---|---|---|---|---|---|---|
| MIPIA019Ta_3b | AISI316L | 27/19 | G 1/2" | G 1/2" | G 1/2" | |
| MIPIA020Ta_3b | AISI316L | 26/19 | G 1/2" | G 1/2" | G 1/2" | |
| MIPIA021Ta_3b | AISI316L | G 3/4" | G 1/2" | G 1/2" | G 1/2" | |
| MIPIA022Ta_3b | AISI316L | 27/19 | 1/2" NPT | G 1/2" | G 1/2" | |
| MIPIA023Ta_3b | AISI316L | 26/19 | 1/2" NPT | G 1/2" | G 1/2" | |
| MIPIA024Ta_3b | AISI316L | G 3/4" | 1/2" NPT | G 1/2" | G 1/2" |
- Material
- AISI316L
- Measure A
- 27/19
- Measure B
- G 1/2"
- Water outlets
- G 1/2"
- Headwork
- G 1/2"
- Availability
- Material
- AISI316L
- Measure A
- 26/19
- Measure B
- G 1/2"
- Water outlets
- G 1/2"
- Headwork
- G 1/2"
- Availability
- Material
- AISI316L
- Measure A
- G 3/4"
- Measure B
- G 1/2"
- Water outlets
- G 1/2"
- Headwork
- G 1/2"
- Availability
- Material
- AISI316L
- Measure A
- 27/19
- Measure B
- 1/2" NPT
- Water outlets
- G 1/2"
- Headwork
- G 1/2"
- Availability
- Material
- AISI316L
- Measure A
- 26/19
- Measure B
- 1/2" NPT
- Water outlets
- G 1/2"
- Headwork
- G 1/2"
- Availability
- Material
- AISI316L
- Measure A
- G 3/4"
- Measure B
- 1/2" NPT
- Water outlets
- G 1/2"
- Headwork
- G 1/2"
- Availability
