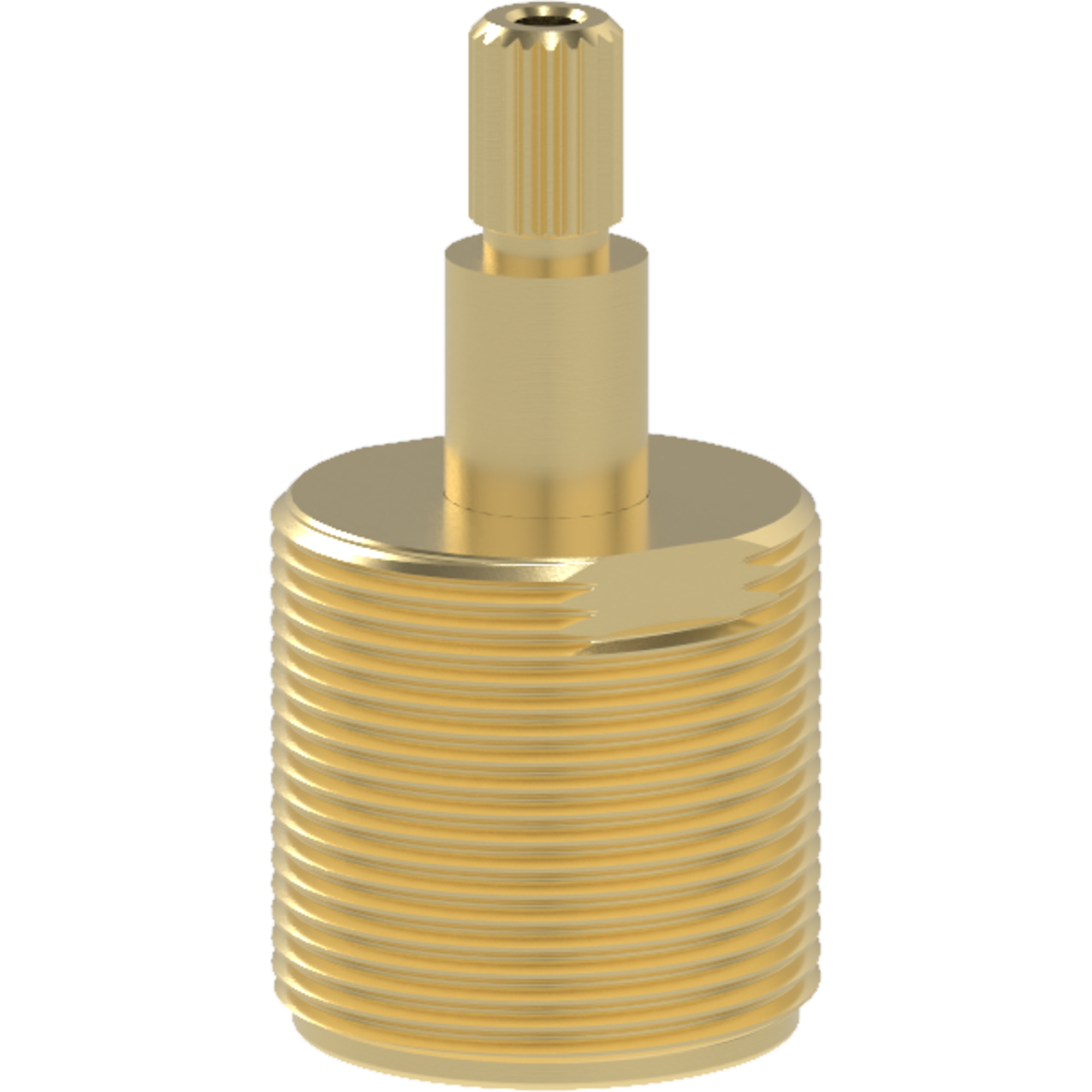

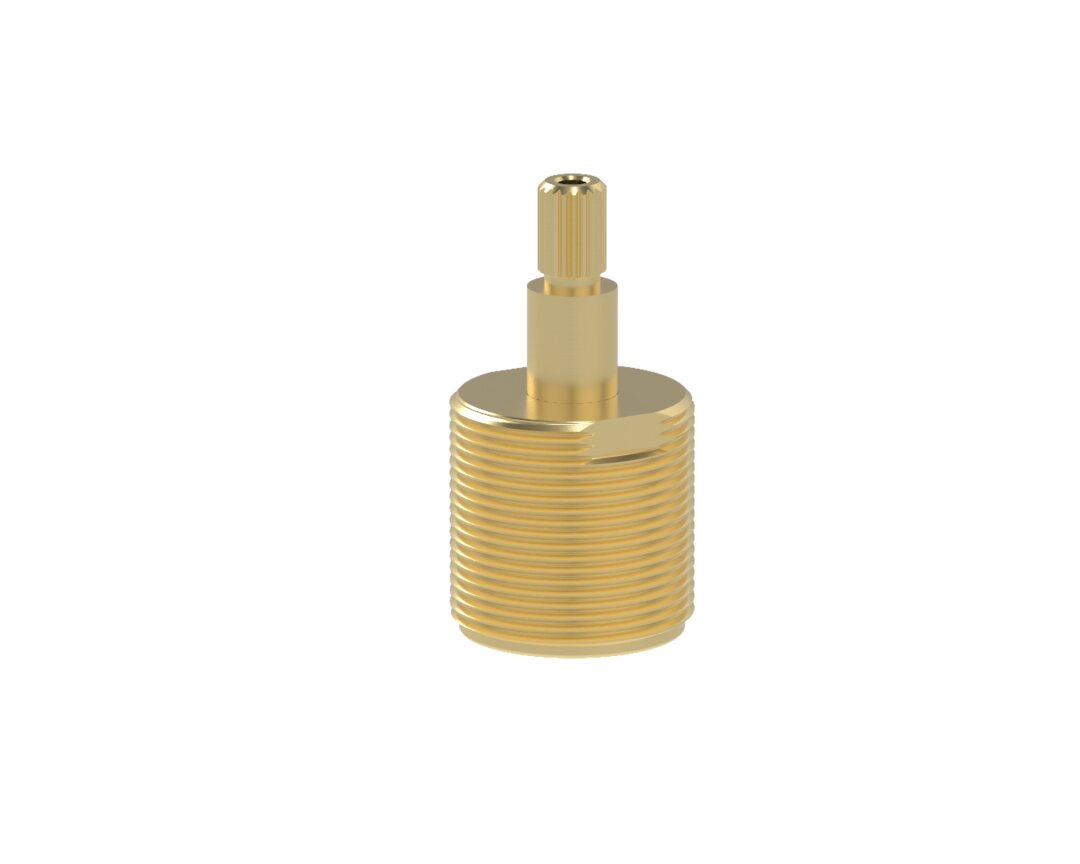

MIASS001Ta
Extension kit two-way diverter
MIASS001Ta
Extension kit two-way diverter

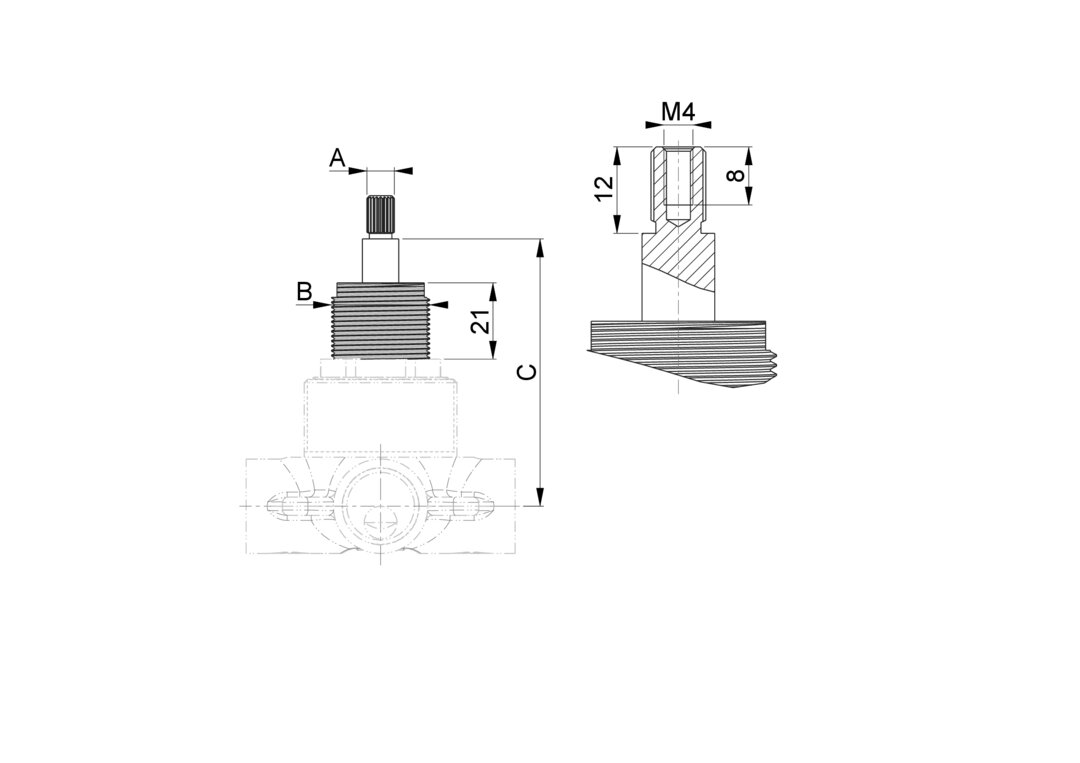

| Code | Material | Measure A | Measure B | Measure C | Availability |
|---|---|---|---|---|---|
| MIASS001Ta | CW617N | 8 z20 | 27/19 | 72 mm | |
| MIASS001Ta1 | CW617N | 8 z20 | 26/19 | 72 mm | |
| MIASS001Ta2 | CW617N | 8 z20 | G 3/4" | 72 mm | |
| MIASS001Ta3 | CW617N | 8 z24 | 27/19 | 72 mm | |
| MIASS001Ta4 | CW617N | 8 z24 | 26/19 | 72 mm | |
| MIASS001Ta5 | CW617N | 8 z24 | G 3/4" | 72 mm | |
| MIASS004Ta | CW617N | 8 z20 | 27/19 | 78,5 mm | |
| MIASS004Ta1 | CW617N | 8 z20 | 26/19 | 78,5 mm | |
| MIASS004Ta2 | CW617N | 8 z20 | G 3/4" | 78,5 mm |
- Material
- CW617N
- Measure A
- 8 z20
- Measure B
- 27/19
- Measure C
- 72 mm
- Availability
- Material
- CW617N
- Measure A
- 8 z20
- Measure B
- 26/19
- Measure C
- 72 mm
- Availability
- Material
- CW617N
- Measure A
- 8 z20
- Measure B
- G 3/4"
- Measure C
- 72 mm
- Availability
- Material
- CW617N
- Measure A
- 8 z24
- Measure B
- 27/19
- Measure C
- 72 mm
- Availability
- Material
- CW617N
- Measure A
- 8 z24
- Measure B
- 26/19
- Measure C
- 72 mm
- Availability
- Material
- CW617N
- Measure A
- 8 z24
- Measure B
- G 3/4"
- Measure C
- 72 mm
- Availability
- Material
- CW617N
- Measure A
- 8 z20
- Measure B
- 27/19
- Measure C
- 78,5 mm
- Availability
- Material
- CW617N
- Measure A
- 8 z20
- Measure B
- 26/19
- Measure C
- 78,5 mm
- Availability
- Material
- CW617N
- Measure A
- 8 z20
- Measure B
- G 3/4"
- Measure C
- 78,5 mm
- Availability
