MIASS006Ta

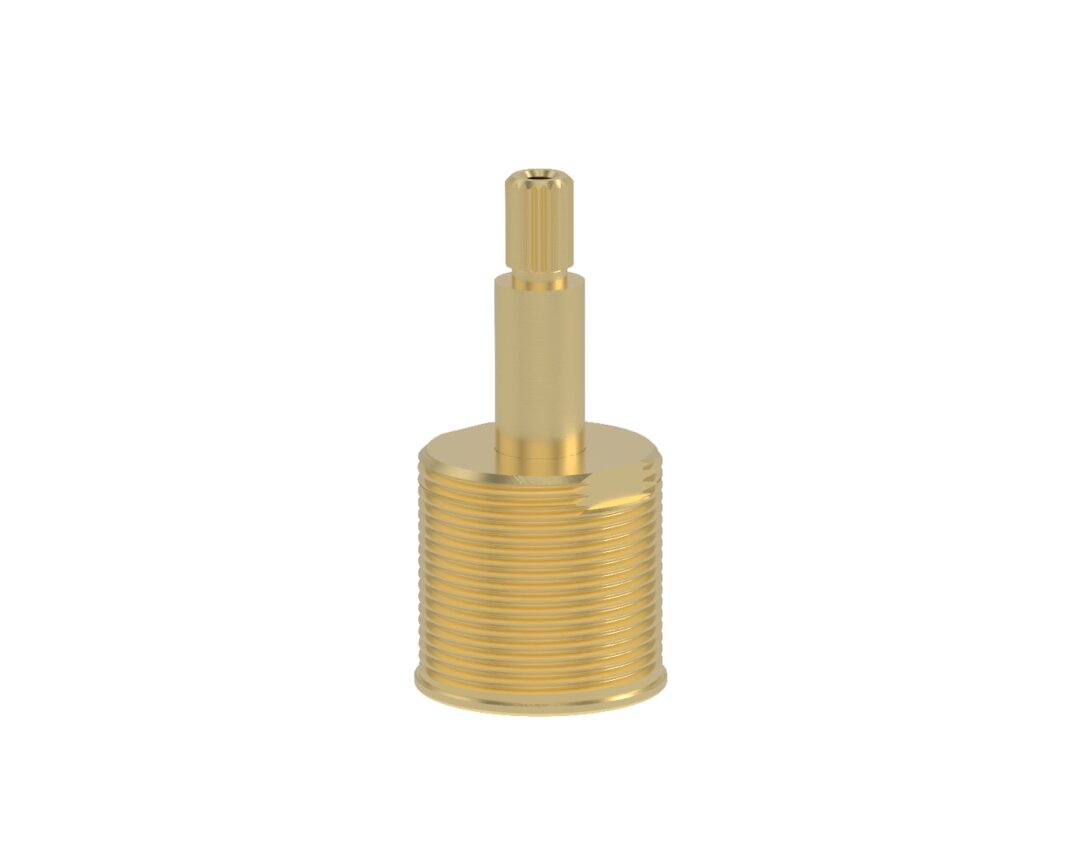

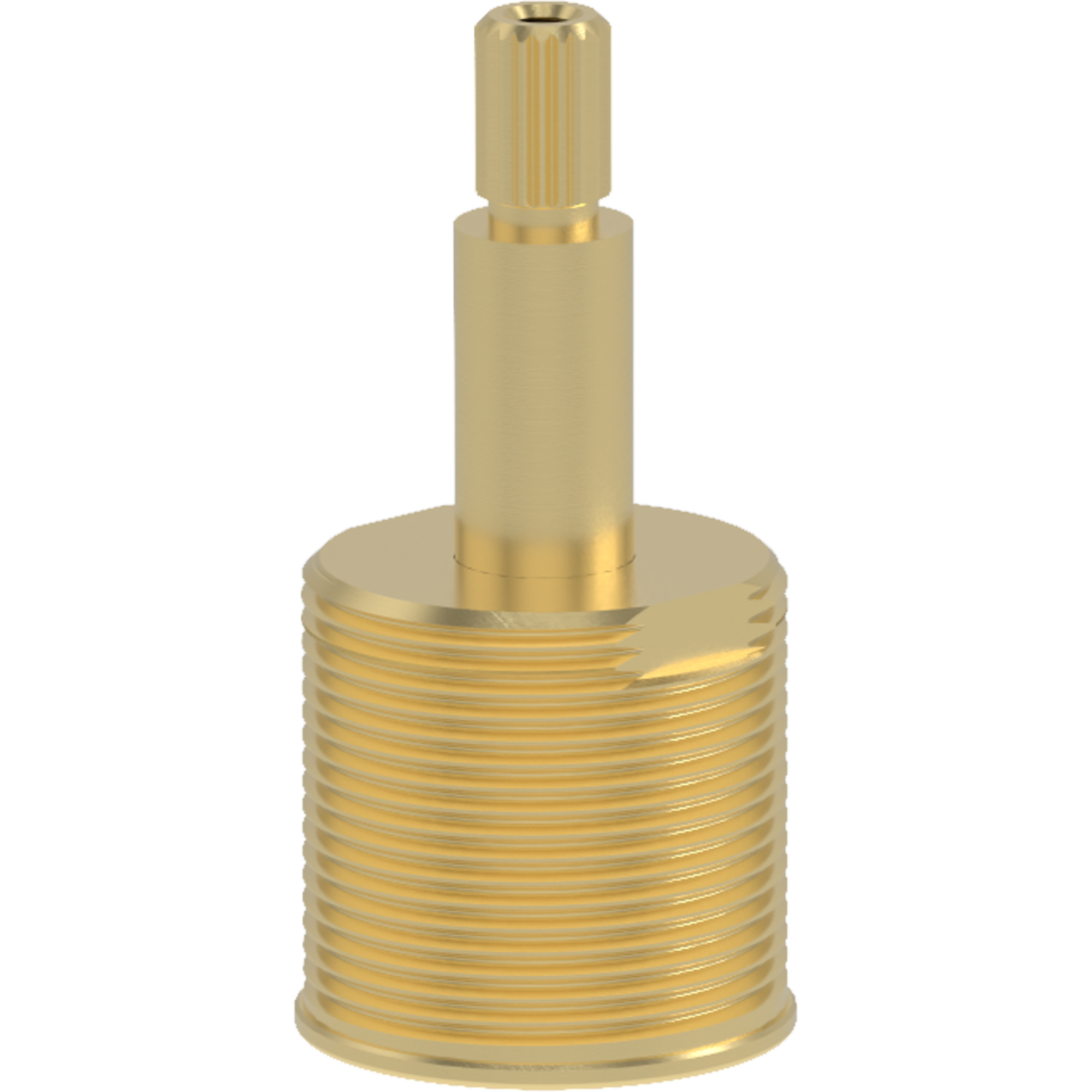

Extension kit two and three-way mini diverter
MIASS006Ta
Extension kit two and three-way mini diverter

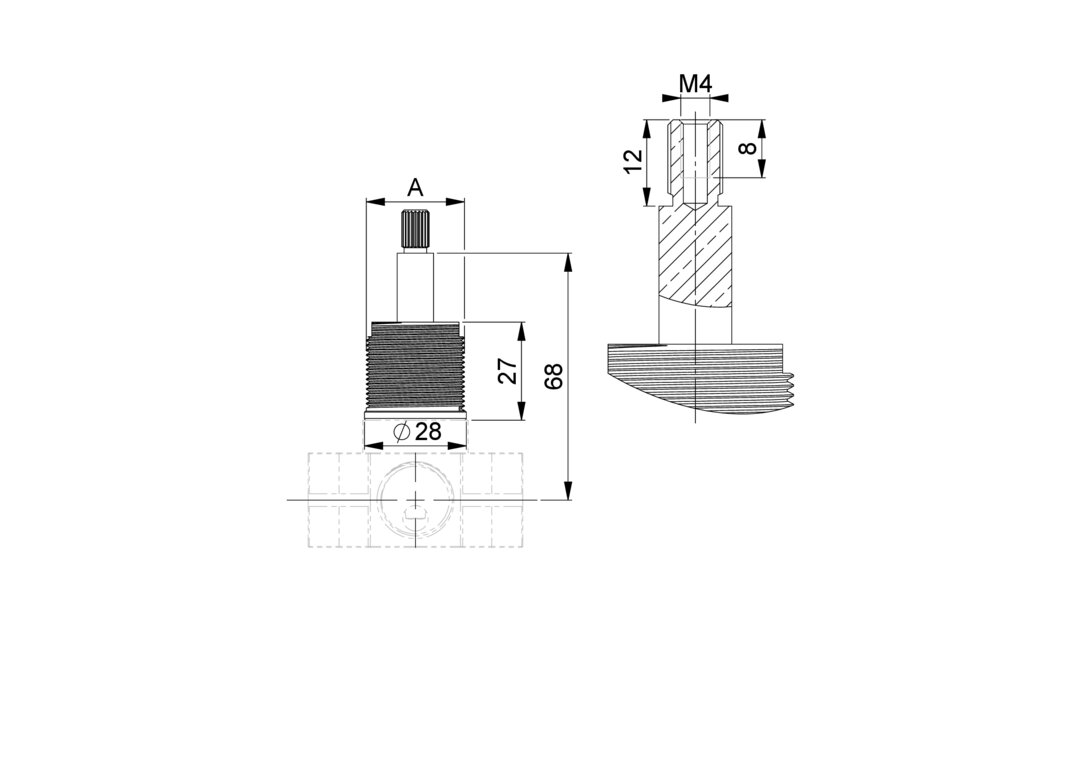

| Code | Material | Measure A | Diameter | Height | Broach | Availability |
|---|---|---|---|---|---|---|
| MIASS006Ta | CW617N | 27/19 | ⌀ 28 mm | 68 mm | 8 z20 | |
| MIASS006Ta1 | CW617N | 26/19 | ⌀ 28 mm | 68 mm | 8 z20 | |
| MIASS006Ta2 | CW617N | G 3/4" | ⌀ 28 mm | 68 mm | 8 z20 |
- Material
- CW617N
- Measure A
- 27/19
- Diameter
- ⌀ 28 mm
- Height
- 68 mm
- Broach
- 8 z20
- Availability
- Material
- CW617N
- Measure A
- 26/19
- Diameter
- ⌀ 28 mm
- Height
- 68 mm
- Broach
- 8 z20
- Availability
- Material
- CW617N
- Measure A
- G 3/4"
- Diameter
- ⌀ 28 mm
- Height
- 68 mm
- Broach
- 8 z20
- Availability
