001-19-01A-010

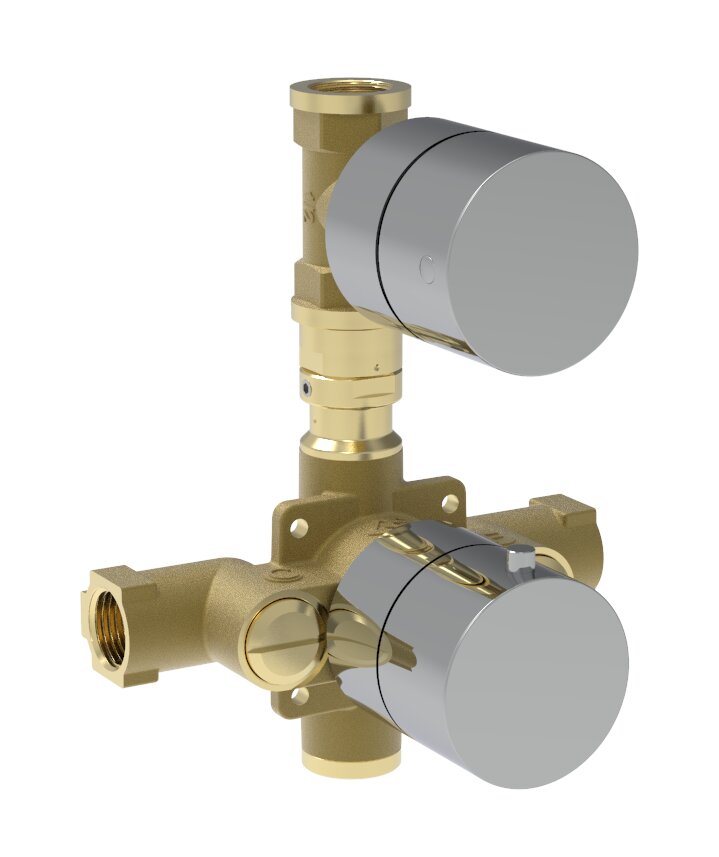

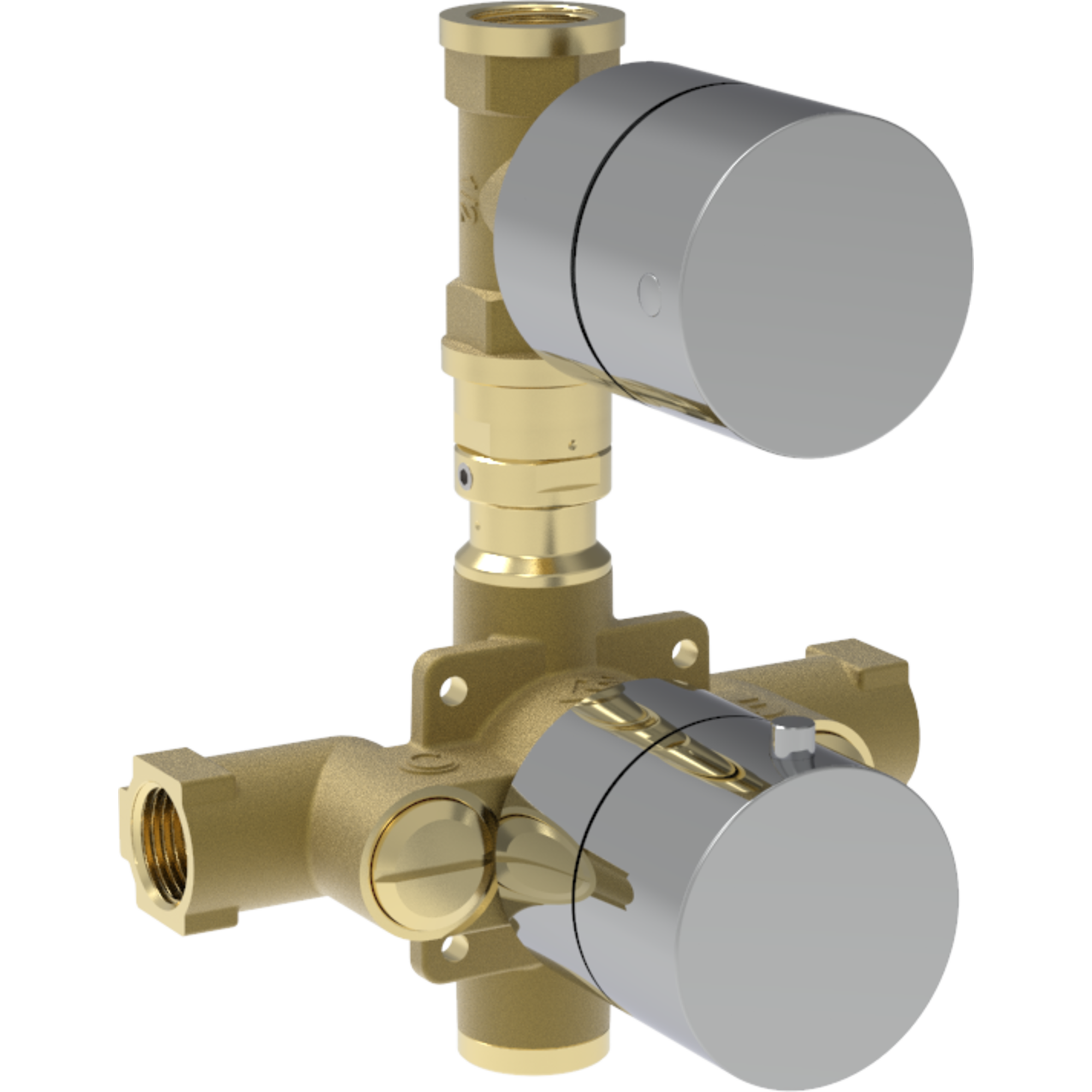

Thermostatic mixer with inspectable non-return valves combined with control valves, chrome lock-nuts and handles
001-19-01A-010
Thermostatic mixer with inspectable non-return valves combined with control valves, chrome lock-nuts and handles
| Code | Material | Water inlets | Water outlets | Center distance | Headwork | Cartridge | Diameter | Availability |
|---|---|---|---|---|---|---|---|---|
| 001-19-01A-010 | CW617N | 2x G 1/2" | G 1/2" | 100 mm | G 1/2" | VT28 | ⌀ 52 mm |
- Material
- CW617N
- Water inlets
- 2x G 1/2"
- Water outlets
- G 1/2"
- Center distance
- 100 mm
- Headwork
- G 1/2"
- Cartridge
- VT28
- Diameter
- ⌀ 52 mm
- Availability
