001-19-01A-011

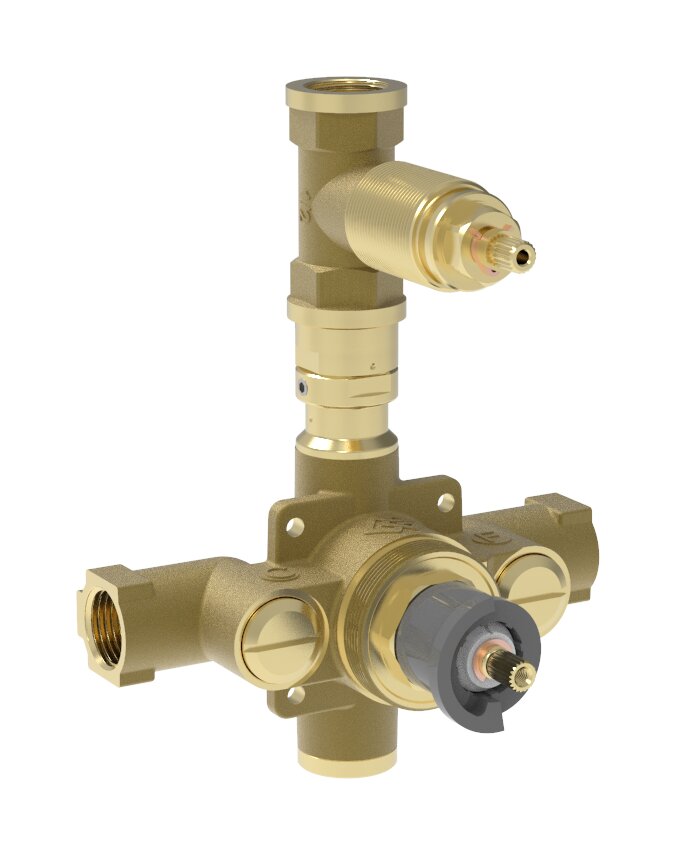

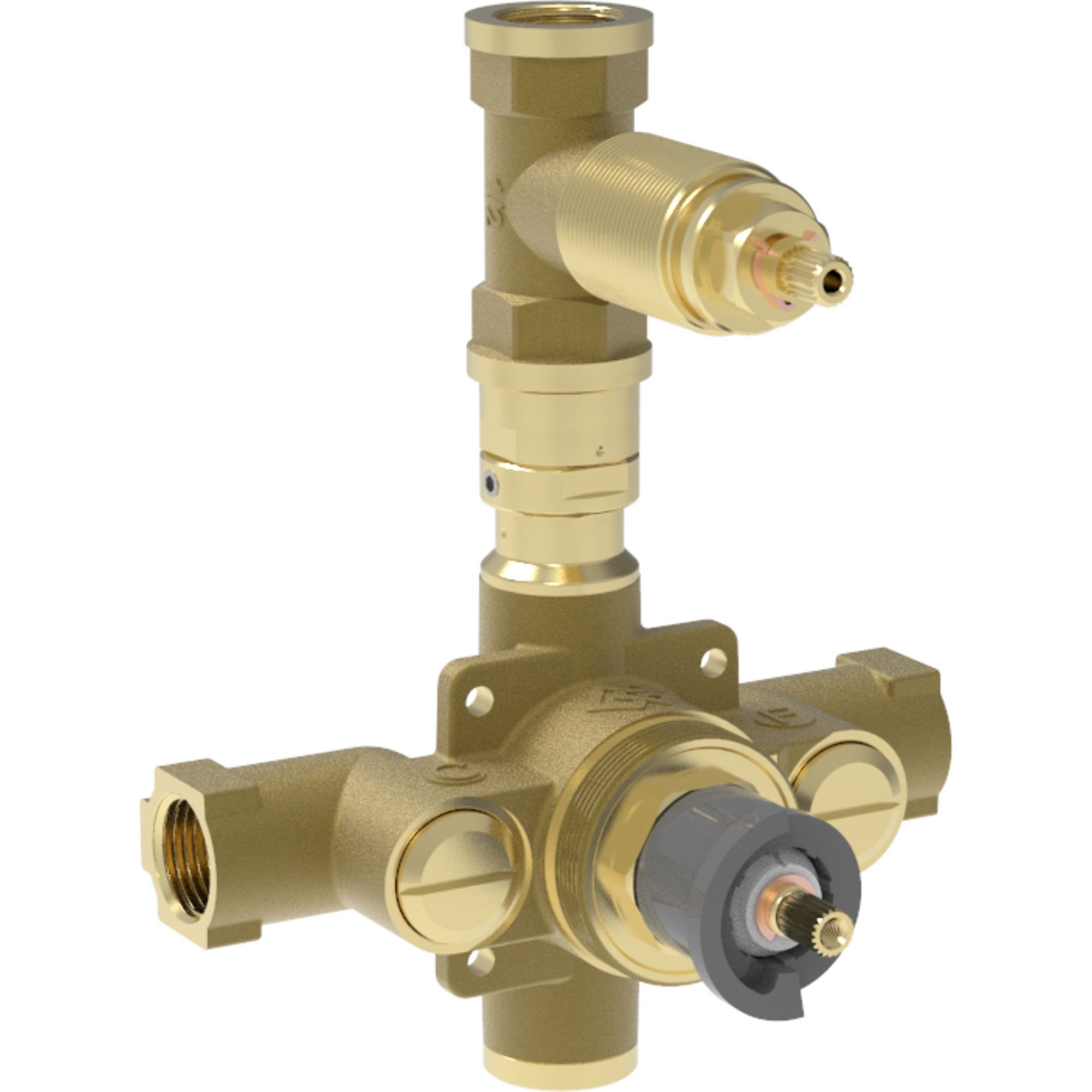

Thermostatic mixer with integrated inspectable non-return valves combined with control valves
001-19-01A-011
Thermostatic mixer with integrated inspectable non-return valves combined with control valves
| Code | Material | Water inlets | Water outlets | Center distance | Headwork | Cartridge | Broach | Availability |
|---|---|---|---|---|---|---|---|---|
| 001-19-01A-011 | CW617N | 2x G 1/2" | G 1/2" | 100 mm | G 1/2" | VT28 | 8 z20 |
- Material
- CW617N
- Water inlets
- 2x G 1/2"
- Water outlets
- G 1/2"
- Center distance
- 100 mm
- Headwork
- G 1/2"
- Cartridge
- VT28
- Broach
- 8 z20
- Availability
