MIMID001Ta0

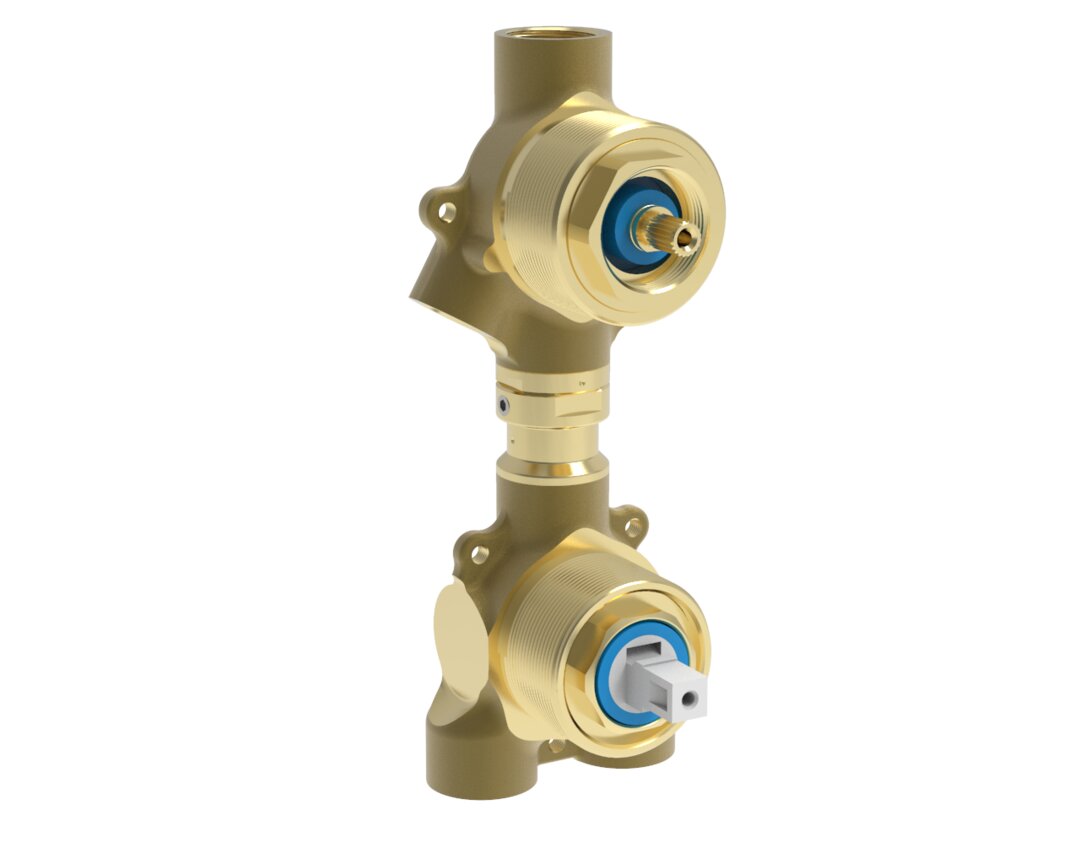

Concealed shower combined with three ways diverter
MIMID001Ta0
Concealed shower combined with three ways diverter
| Code | Material | Water inlets | Water outlets | Center distance | Cartridge | Diverter | Closure | Square | Broach | Availability |
|---|---|---|---|---|---|---|---|---|---|---|
| MIMID001Ta0 | CW617N | 2x G 3/8" | 1x G 1/2" + 2x G 3/8" | 100 mm | 35 mm | 3 vie / 3 ways | No | 9x9 mm | 8 z20 |
- Material
- CW617N
- Water inlets
- 2x G 3/8"
- Water outlets
- 1x G 1/2" + 2x G 3/8"
- Center distance
- 100 mm
- Cartridge
- 35 mm
- Diverter
- 3 vie / 3 ways
- Closure
- No
- Square
- 9x9 mm
- Broach
- 8 z20
- Availability
